OYES SPECIALTY GREASE
Conductive Grease
Conductive lubrication developed to maintain reliable current flow across electrical interfaces.
- ✓Conductive filler system
- ✓Helps stabilize contact resistance
- ✓Moisture and corrosion protection
- ✓Wear reduction during movement
- ✓Custom conductivity levels available
TYPICAL APPLICATIONS
Where this grease performs.
PERFORMANCE PROFILE
Built around real operating conditions.
These values describe the available product family. Exact performance depends on the selected formula and should be confirmed in the product-specific TDS.HOW TO SELECT
The right grade starts with five details.
You do not need to specify the chemistry first. Tell us how the component works, and our technical team can narrow the formula, consistency and package format.
- 01Component and materialsIdentify metals, plastics, elastomers and every surface touching the lubricant.
- 02Temperature and environmentInclude startup and peak temperature, water, dust, chemicals and outdoor exposure.
- 03Speed, load and motionShare rotational speed, contact load, vibration, sliding distance or operating feel.
- 04Performance targetDefine required life, noise, torque, conductivity, sealing or certification needs.
- 05Application and packagingTell us how the grease is applied and the sample, production and annual quantities.
PRODUCT SELECTION
4 available products for evaluation.
Product values are taken from the OYES core product data sheet. Confirm the final grade against the current product-specific TDS and your actual operating conditions.| Product | Model | Appearance | Grade | Temperature | Features & Applications |
|---|---|---|---|---|---|
| Conductive grease | EC-2600 | Black | 2 | -40 to +180°C | Suitable for bearings, slip rings, grounding, rotary/vibration connections and electrostatic discharge; not recommended for non-isolated use with multi-pin connectors or adjacent exposed terminals. |
| Power composite grease | EC-3200 | silver-grey color | 2 | -20 to +120°C | Suitable for aluminium-aluminium, aluminium-copper crimping/bolting, aluminium conduit threads and electrical equipment connection surfaces; to be cleaned, coated and fastened in accordance with equipment specifications. |

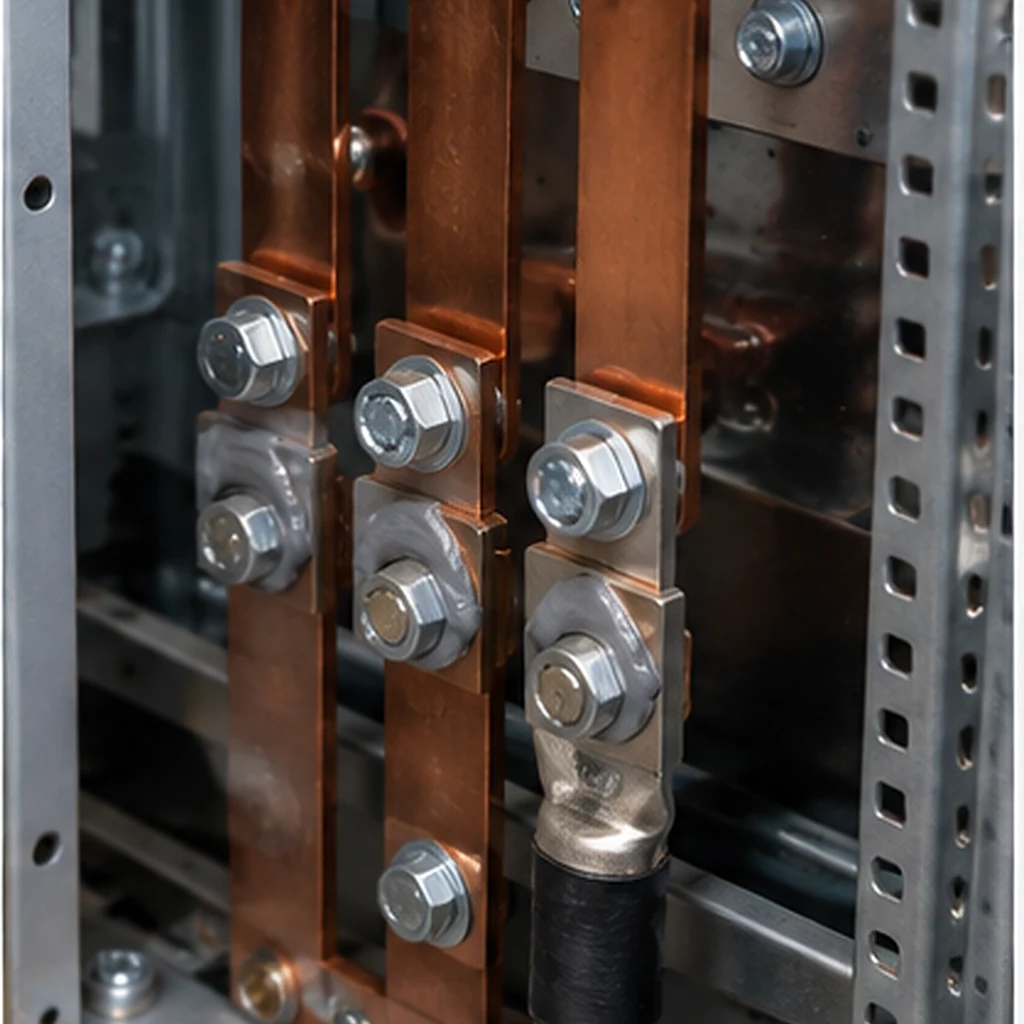

| Copper conductive paste | EC-BT01 | Metallic gray | 2 | -20 to +120°C | Suitable for copper busbar, copper-copper bolt connection, copper conduit thread and ground connection; after cleaning, the thin layer is coated and tightened according to the specified torque to avoid squeezing into the adjacent insulation gap. |
| Electroplating bath conductive paste | EC-BT22 | dark gray | 1 | -35 to +150°C | Suitable for anode cathode busbar, take-up slider, hanger contact and busbar connector for electroplating/anodizing lines; must be verified not to contaminate bath solution. |
DOCUMENTATION, PACKAGING & OEM
Ready for evaluation and procurement.
OYES supports the path from initial sample through production supply. Available documents and compliance statements are confirmed by product and target market.
Technical documents
Product-specific TDS, SDS (MSDS), COA and test information for technical review.
Samples and validation
Trial quantities for compatibility, torque, life, dispensing and equipment testing.
Flexible packaging
Syringes, tubes, cartridges, jars, pails and production bulk formats where applicable.
OEM / private label
Formula matching, label support, market-ready packaging and repeat production supply.
Build your lubrication solution with OYES.
Share your application, operating conditions and packaging needs. Our team will help you choose a starting product and arrange the technical information or samples for evaluation.
