OYES SPECIALTY GREASE

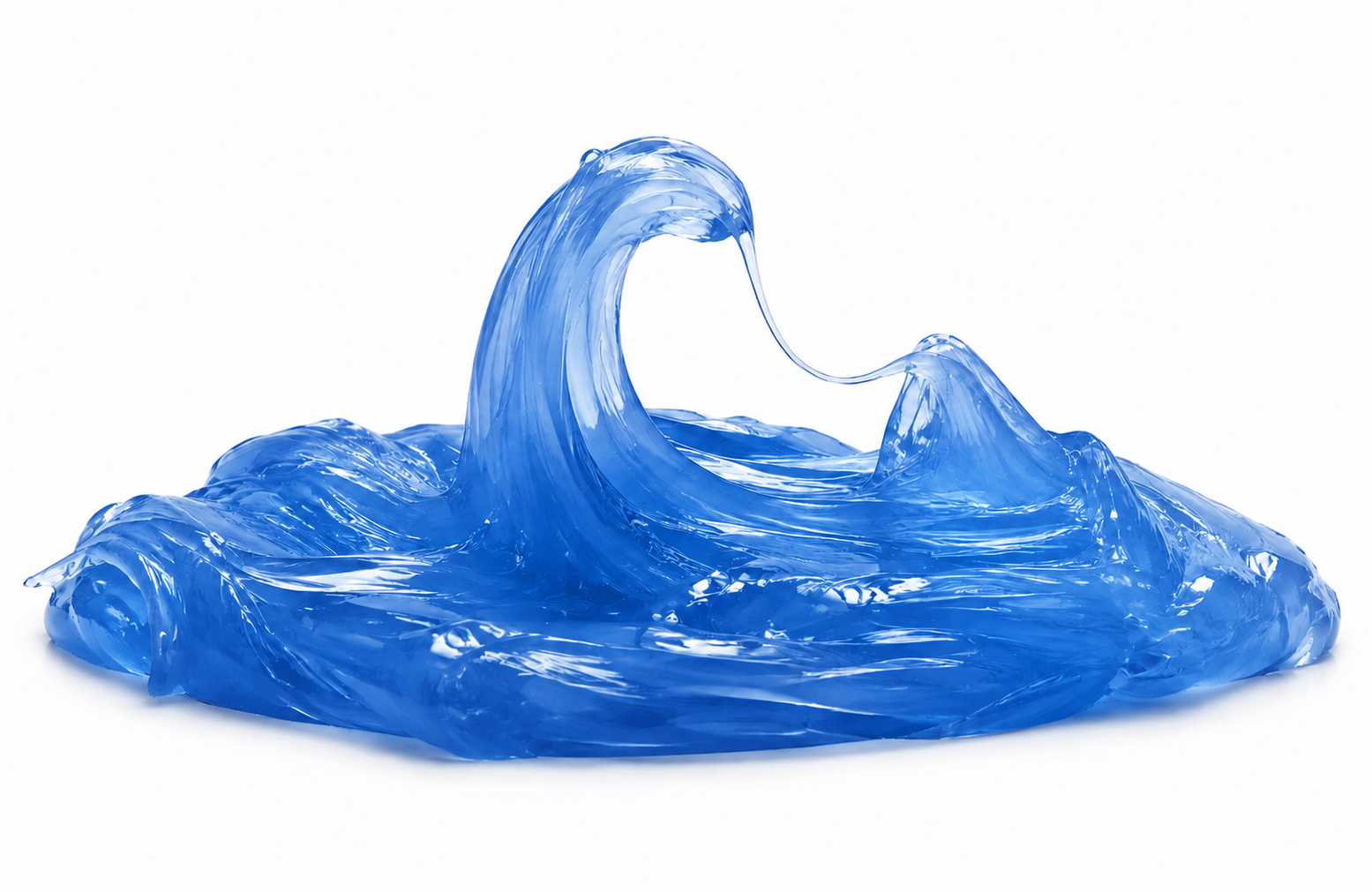

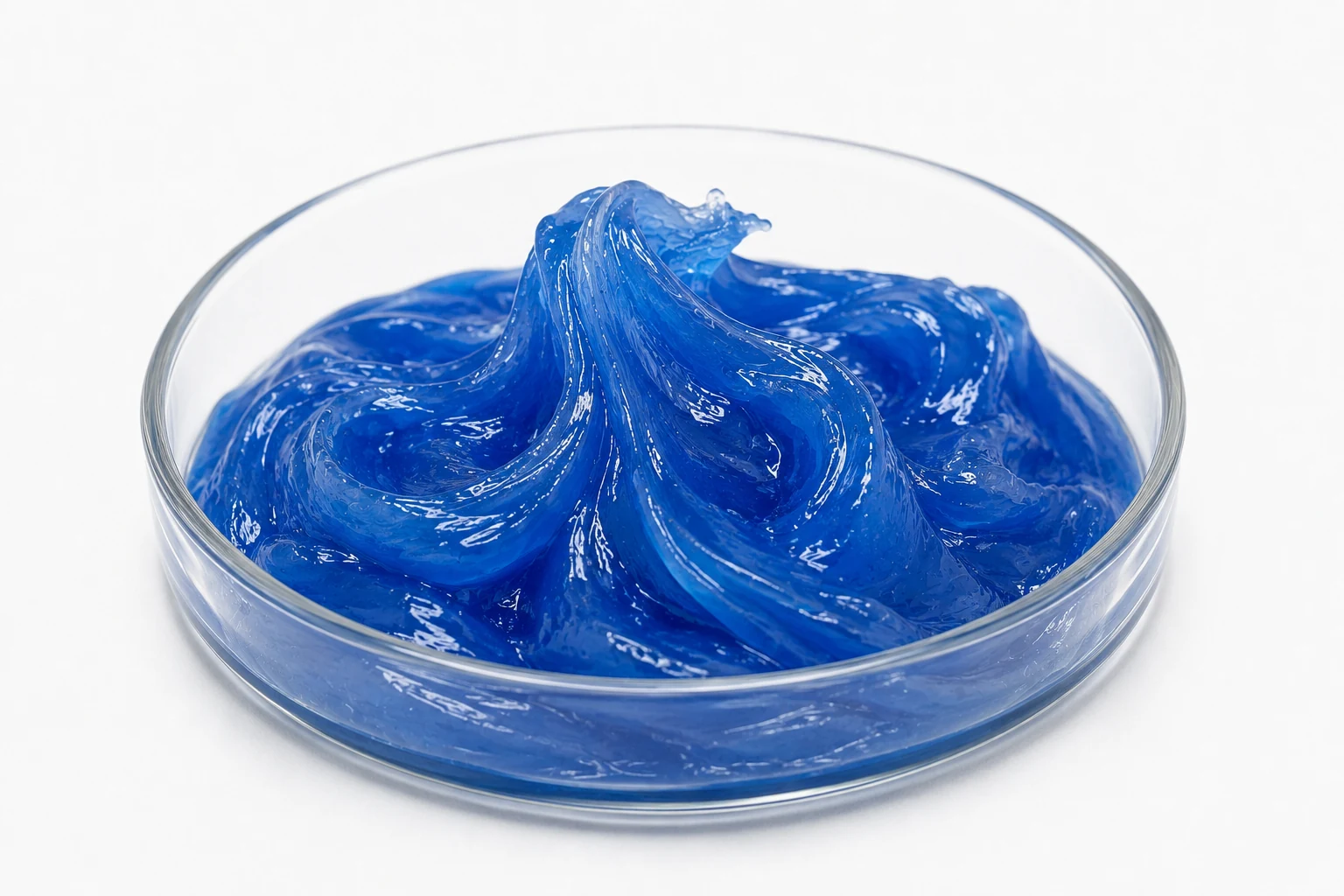

Damping Grease
Controlled-motion grease for smooth movement, premium tactile feel and reduced vibration.
- ✓Consistent damping resistance
- ✓Smooth, quiet movement
- ✓Reduces free play and vibration
- ✓Multiple torque grades available
- ✓Good plastic compatibility options
TYPICAL APPLICATIONS
Where this grease performs.
01

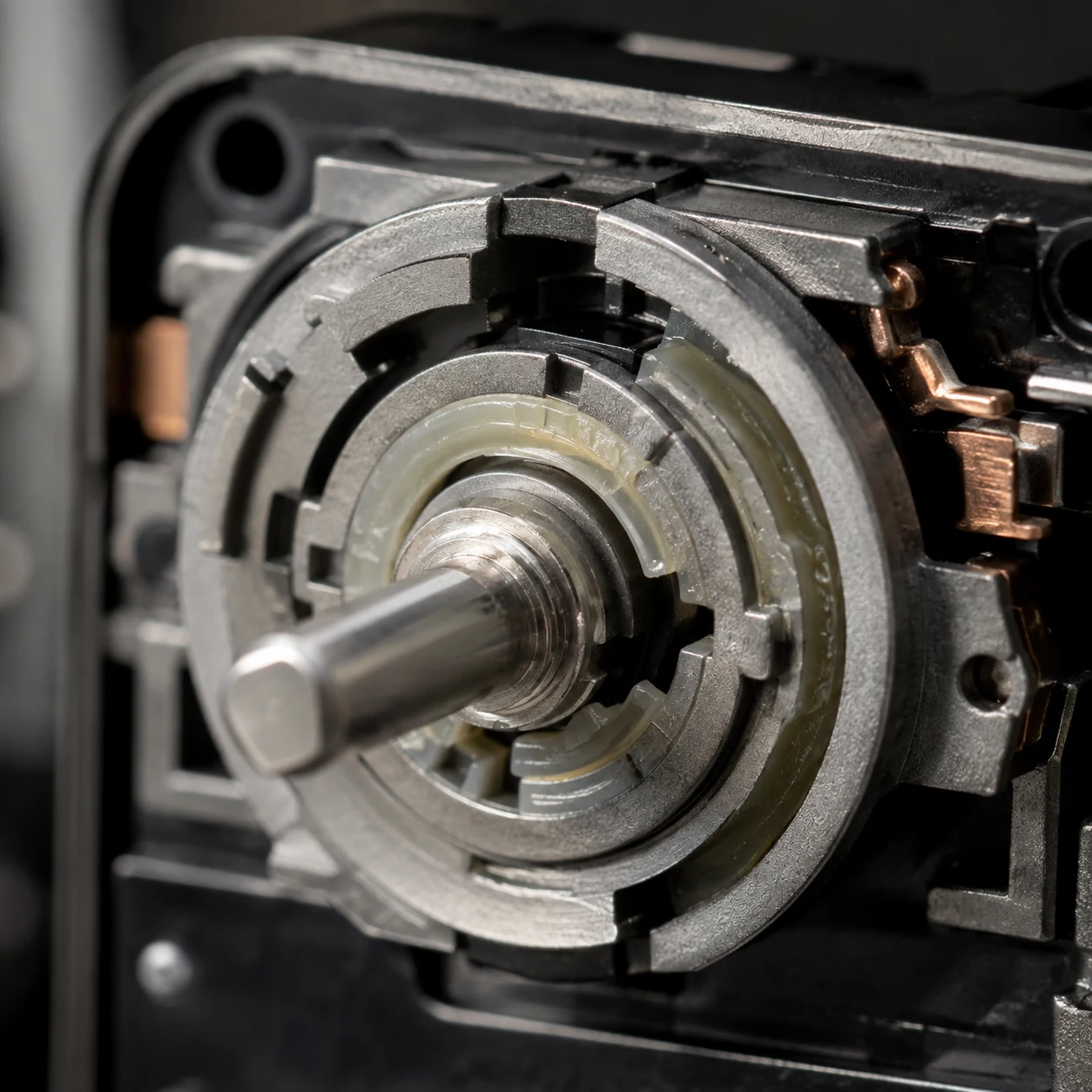

Rotary Controls
02

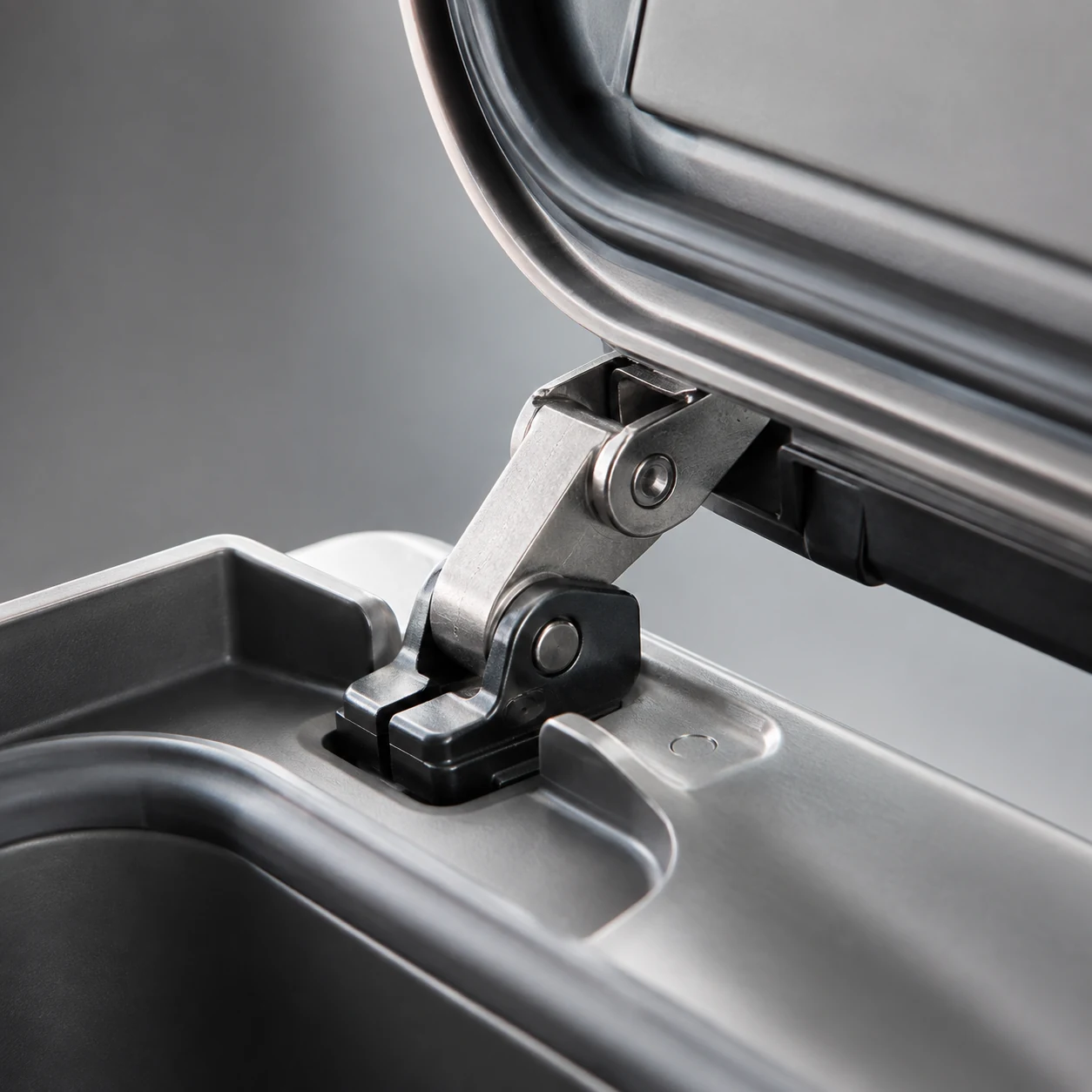

Hinges
03

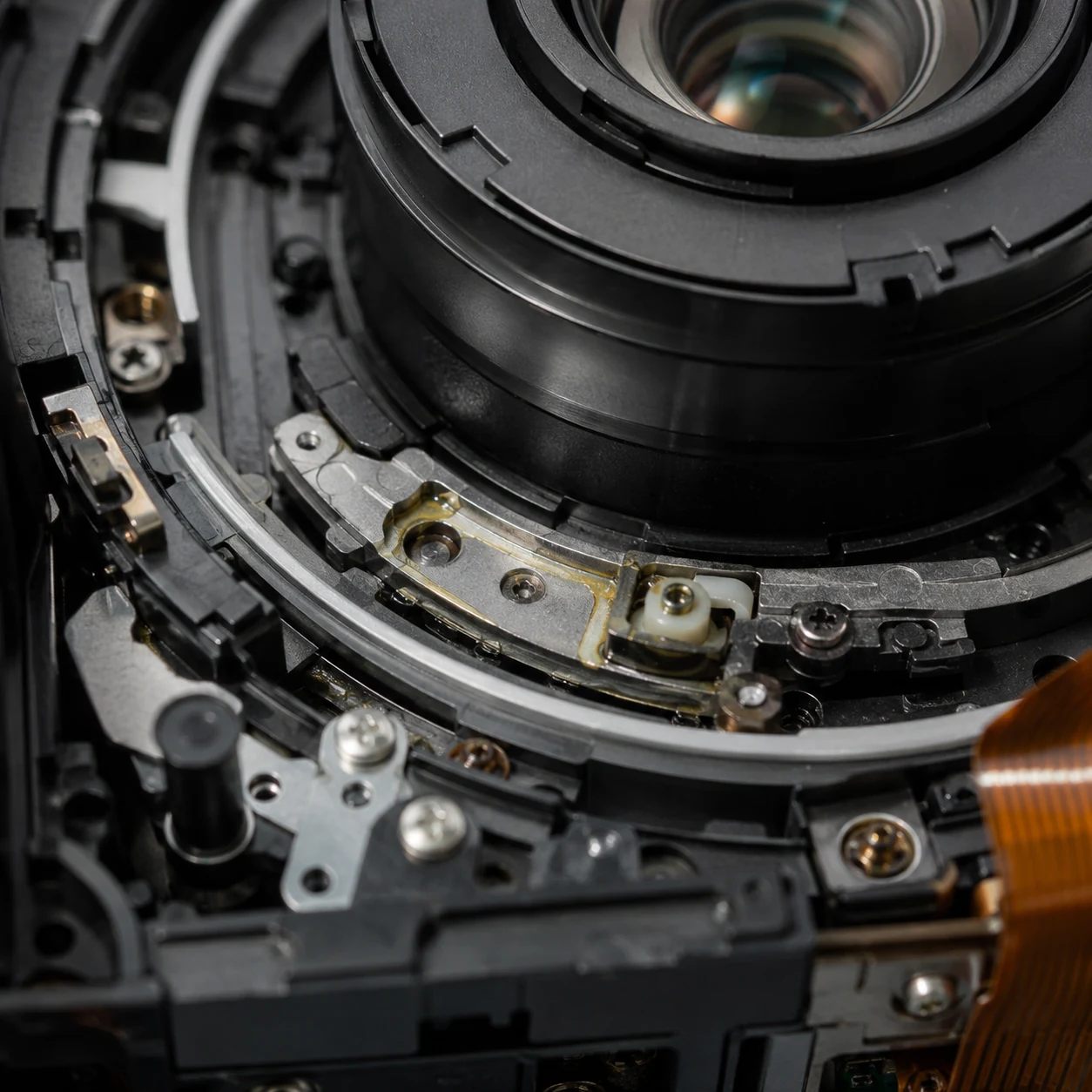

Camera Mechanisms
04

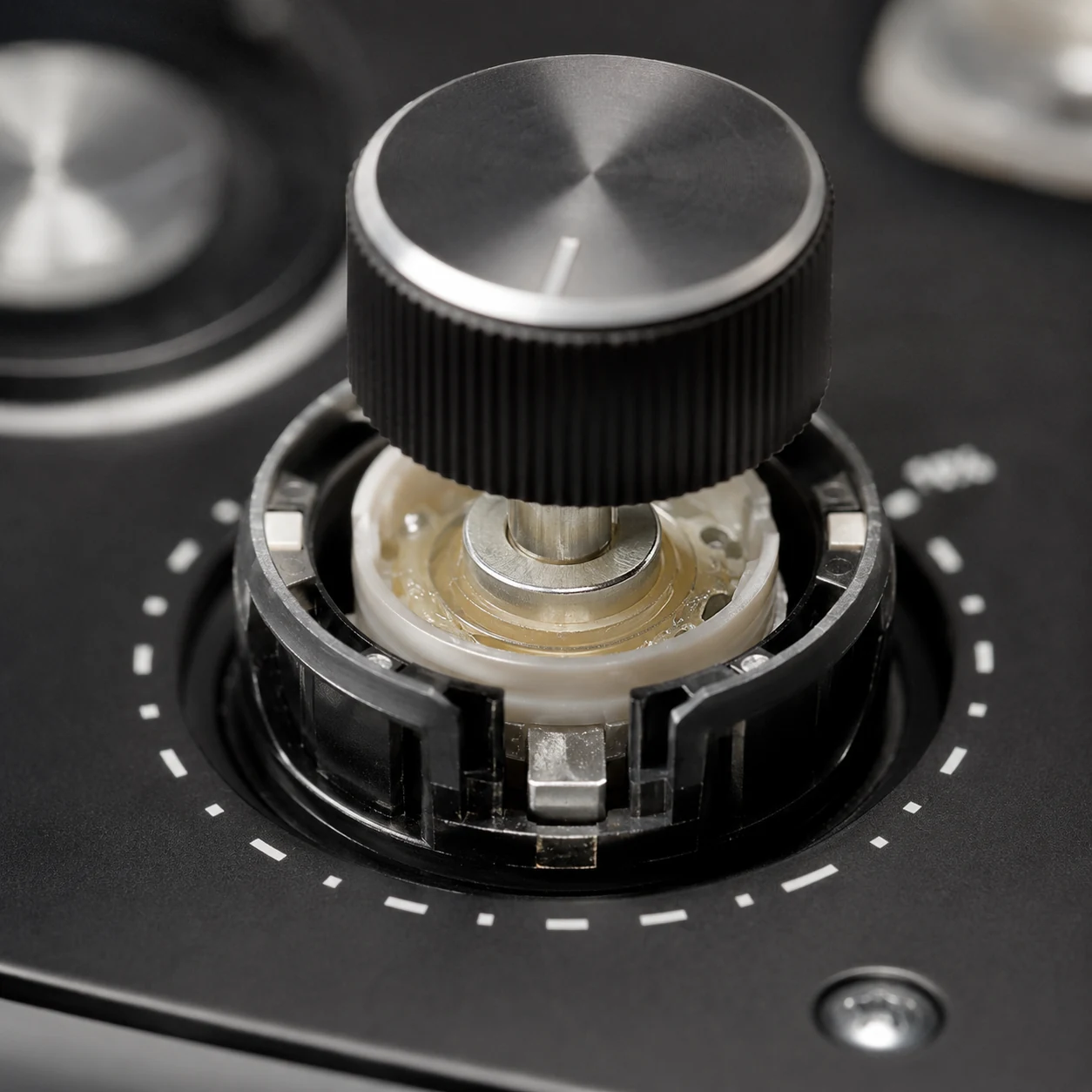

Instrument Knobs
05

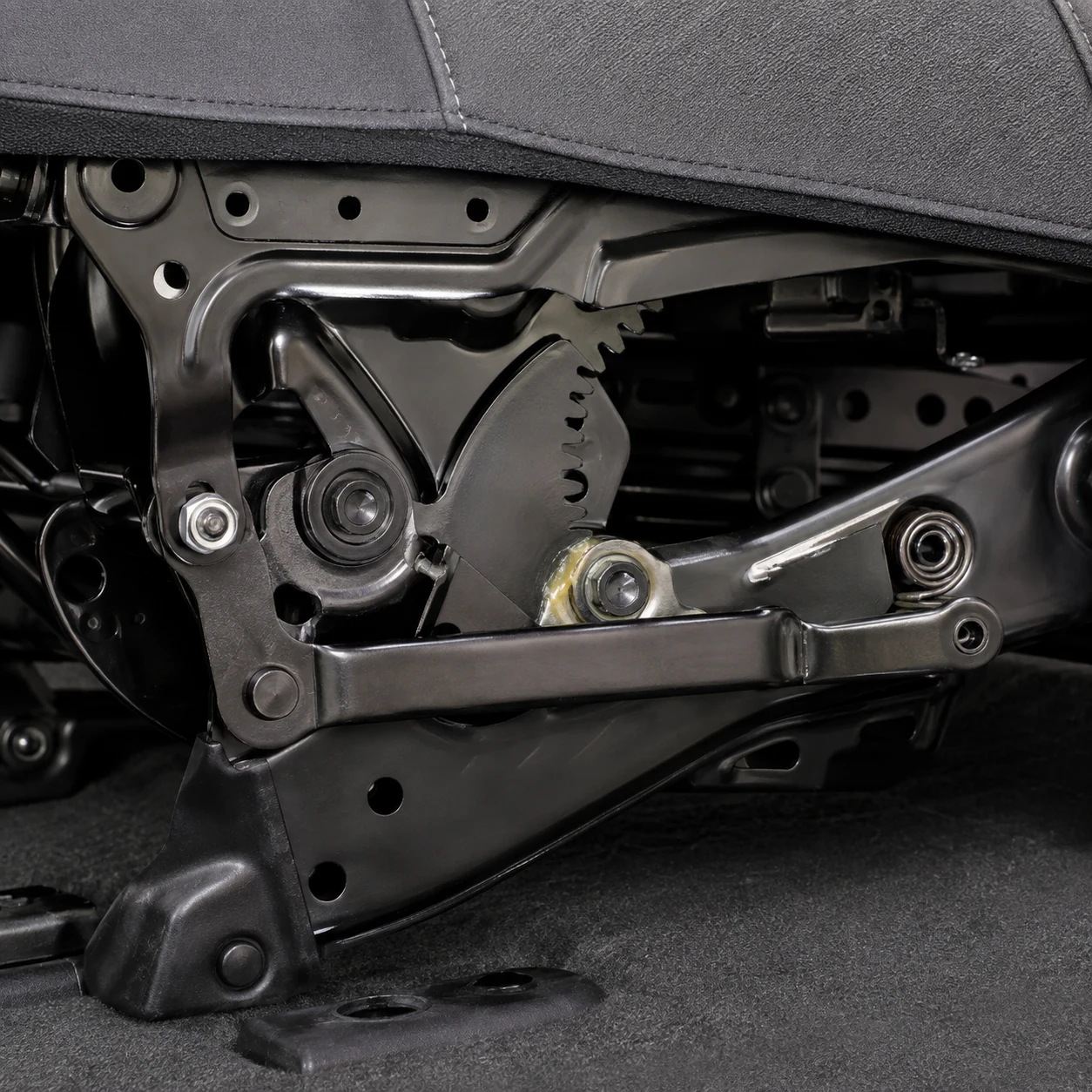

Seat Adjusters
06

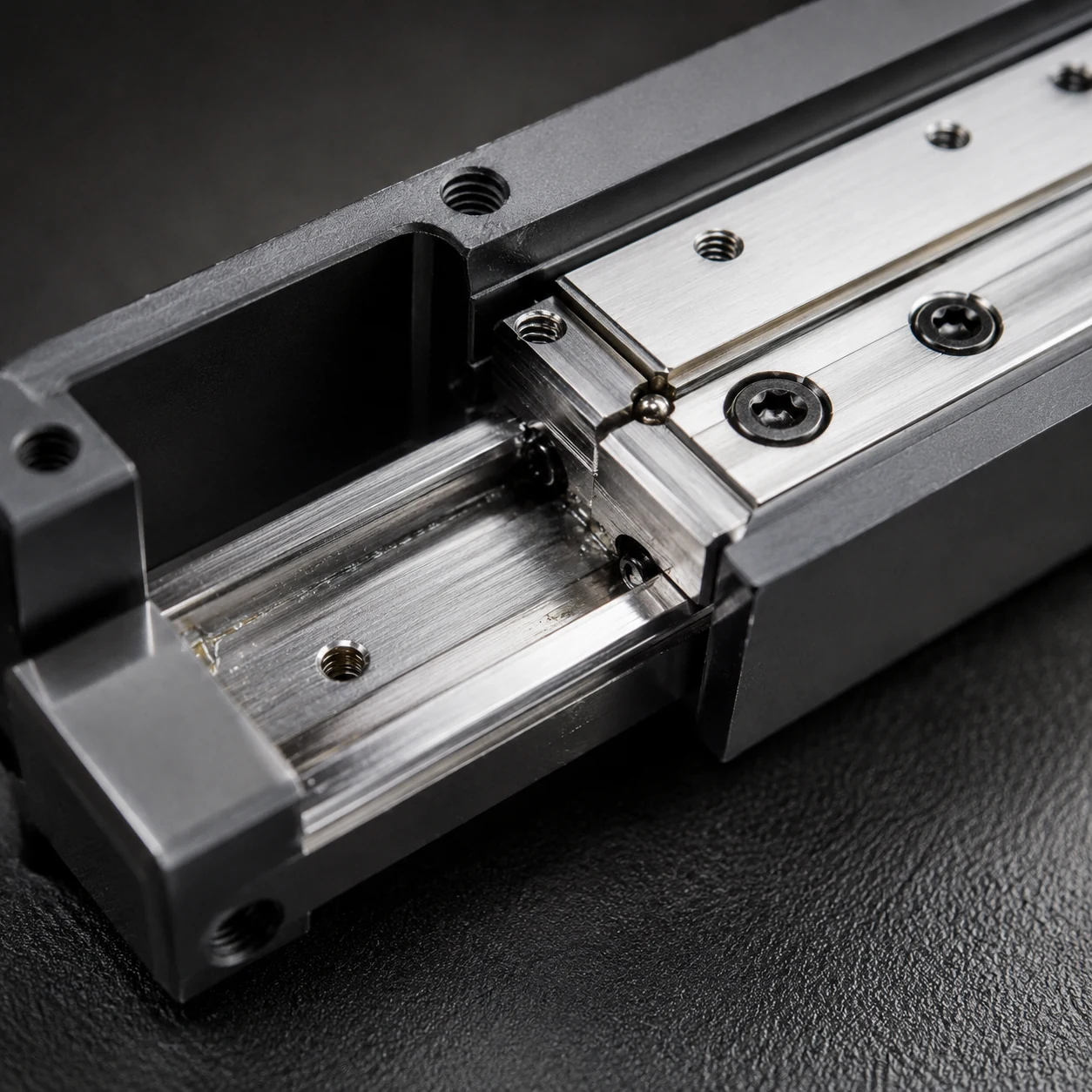

Precision Slides
PERFORMANCE PROFILE
Built around real operating conditions.
These values describe the available product family. Exact performance depends on the selected formula and should be confirmed in the product-specific TDS.BASE OIL / SYSTEMSyntheticSelected for stability, compatibility and service life.
OPERATING RANGE−30 to 150°CRepresentative family range; application limits may differ.
AVAILABLE GRADESLight–heavy torqueConsistency can be matched to dispensing and component needs.
PRIMARY FOCUSMotion controlBalanced around the most important application requirement.
HOW TO SELECT
The right grade starts with five details.
You do not need to specify the chemistry first. Tell us how the component works, and our technical team can narrow the formula, consistency and package format.
- 01Component and materialsIdentify metals, plastics, elastomers and every surface touching the lubricant.
- 02Temperature and environmentInclude startup and peak temperature, water, dust, chemicals and outdoor exposure.
- 03Speed, load and motionShare rotational speed, contact load, vibration, sliding distance or operating feel.
- 04Performance targetDefine required life, noise, torque, conductivity, sealing or certification needs.
- 05Application and packagingTell us how the grease is applied and the sample, production and annual quantities.
PRODUCT SELECTION
28 available products for evaluation.
Product values are taken from the OYES core product data sheet. Confirm the final grade against the current product-specific TDS and your actual operating conditions.| Product | Model | Appearance | Grade | Temperature | Features & Applications |
|---|---|---|---|---|---|
| Damping oil | DO-3/102 | colorless and transparent | — | -25 to +130°C | Suitable for knobs, small rotary damper and cushioning mechanism; recommended for quantitative perfusion after vacuum defoaming. |
| Wide temperature damping oil | DO-3/104 | colorless and transparent | — | -25 to +130°C | Suitable for wide temperature rotary damper, outdoor/vehicle-mounted cushioning mechanism; final viscosity must be set according to the torque of the whole machine. |
| High viscosity resistance oil | DO-3/106 | colorless and transparent | — | -25 to +130°C | Suitable for high torque rotary damper, slow descent mechanism; need vacuum defoaming, leakage and cycle life test. |
| Dampener buffer oil | DO-3/107 | colorless and transparent | — | -25 to +130°C | Suitable for closed rotary/linear damper and soft closing mechanism; filtering and vacuum defoaming are recommended before filling. |
| Car phone holder damping oil | DO-4/201 | colorless and transparent | — | -20 to +130°C | Suitable for car phone holder hinges, ball heads, folding arms; avoid oil migration to screens, finishes or adhesive parts. |
| Hinge damping oil | DO-4/202 | colorless and transparent | — | -18 to +135°C | Suitable for small slow-lowering hinges, covers and flip mechanisms; not a substitute for load-bearing hinge grease. |
| Door Closer Damping Oil | DO-4/203 | colorless and transparent | — | -20 to +135°C | It is suitable for the hydraulic chamber of the door closer; it cannot be directly applied with high viscosity silicone oil, and must be selected according to the valve hole, piston clearance and OEM structure. |
| Gun scope damping grease | DO-4/205 | Transparency and translucency | 2 | -20 to +135°C | Suitable for gun scope focusing, adjusting ring and thread damping; must be verified for low-temperature hand feel, optical contamination and anti-migration. |
| Telescope damping grease | DO-4/301 | Transparency and translucency | 2 | -20 to +135°C | Suitable for telescopic focus tubes, eyepiece knobs and sliding threads; do not contaminate lenses and optical coatings. |
| Damper gear damping grease | PD-G2200 | Transparency and translucency | 2 | -20 to +135°C | Suitable for small damping gears, slow opening caps, drive knobs; suitable for lighter resistance and low temperature starting. |
| Hinge damping grease | PD-G4301 | Transparency and translucency | 2 | -15 to +135°C | Suitable for medium load hinges, flaps, storage boxes and handrails; target feel must be confirmed with finished torque. |
| Hinge damping grease | PD-G4605 | Transparency and translucency | 2 | -15 to +135°C | Suitable for high resistance hinges, heavier cover plates and flip mechanisms that need to be stationed; low temperatures can significantly increase torque. |
| Hinge damping grease | PD-G4605 | Transparency and translucency | 2 | -10 to +135°C | Suitable for shredder gears, cover plate cushioning and high resistance mechanisms; cannot be used for paper cutting edges or motor bearings instead of grease. |
| Washer damping grease | PD-G4607 | Transparency and translucency | 2 | -10 to +130°C | Suitable for washing machine door covers, knobs, damping mechanisms and buffer pins; must not be used for roller bearings to replace grease. |
| Door Closer Damping Grease | PD-G4608 | Transparency and translucency | 2 | -10 to +130°C | Suitable for external gears, cams, shafts and cushioning mechanisms of door closers; special damping oils should be used for hydraulic chambers. |
| Switch knob damping grease | PD-G5203 | white | 2 | -10 to +130°C | Suitable for switch knobs, volume knobs, control dials; do not apply damping grease to conductive rails when approaching electrical contacts. |
| Measuring instrument damping grease | PD-G8401 | white | 3 | -5 to +135°C | Suitable for measuring instrument knobs, fine adjustment screws, pointer mechanisms; do not contaminate the sensor surface or calibration datum. |
| Potentiometer damping grease | PD-G8605 | white | 3 | -5 to +135°C | Suitable for potentiometer shaft, bearing and knob damping; special contact lubricant is required for resistance rails/slides. |
| Auto Parts Damping Grease | PD-G9900 | white | 3 | -5 to +135°C | Suitable for car storage boxes, seats, shifts, steering, rails, gears and knobs; suitable for interior parts sensitive to silicon migration. |
| Optical damping grease | OCL-R100 | Transparency and translucency | 2 | -60 to +160°C | Suitable for universal optical adjustment rings, threads and slides; must control the amount of coating and prevent oil from migrating to the light path. |
| Optical lens damping grease | OCL-R101 | Transparency and translucency | 2 | -50 to +160°C | Suitable for optical lens focusing, zoom threads and high-resistance adjustment rings; lens atomization and migration tests are required. |
| Flashlight threaded damping grease | OCL-R103 | Transparency and translucency | 2 | -40 to +160°C | Suitable for torch body threads, focusing rings and waterproof seals; do not contaminate reflective cups, LEDs or lenses. |
| Optical anti-diffusion grease | OCL-R225 | Transparency and translucency | 2 | -40 to +160°C | Suitable for optical anti-proliferation/anti-crawling lubrication, precision sliding and sensitive light path adjacent parts. |
| Optical cushioning damping grease | OCL-R230 | Transparency and translucency | 2 | -40 to +160°C | Suitable for optical mechanism cushioning, limiting, damping rails and precision brackets; must prevent impact grease extrusion into the light path. |
| Optical Focus Damping Grease | OCL-R610 | Transparency and translucency | 2 | -40 to +160°C | Suitable for lenses, telescopes, microscope focusing threads and high-precision slides; low-temperature handfeel and optical atomization tests are required. |
| Cryogenic damping oil | LD-D202 | colorless and transparent | — | -40 to +200°C | Suitable for low-temperature rotary damper, outdoor instrument and cold area buffer mechanism; viscosity shall be calibrated according to the minimum temperature of the whole machine. |
| Damper damping oil | LD-D203 | colorless and transparent | — | -40 to +200°C | Suitable for closed rotary/linear damper; recommended for filtration, vacuum defoaming and high and low temperature cycle life. |
| Toilet lid damping oil | LD-D204 | colorless and transparent | — | -40 to +200°C | Suitable for toilet lid rotary damper and gentle lowering hinge; filling shall be defoamed and tested for sealing and cycle life. |
DOCUMENTATION, PACKAGING & OEM
Ready for evaluation and procurement.
OYES supports the path from initial sample through production supply. Available documents and compliance statements are confirmed by product and target market.
Technical documents
Product-specific TDS, SDS (MSDS), COA and test information for technical review.
Samples and validation
Trial quantities for compatibility, torque, life, dispensing and equipment testing.
Flexible packaging
Syringes, tubes, cartridges, jars, pails and production bulk formats where applicable.
OEM / private label
Formula matching, label support, market-ready packaging and repeat production supply.
ApplicationsFind your industryExplore solutions →
Packaging solutionsChoose your pack formatExplore solutions →
Build your lubrication solution with OYES.
Share your application, operating conditions and packaging needs. Our team will help you choose a starting product and arrange the technical information or samples for evaluation.
